Yealink MVC Series S90

Product Information

Yealink MVC S90 – Microsoft Teams Rooms System for Extra-Large Conference Rooms

The Yealink MVC S90 is a professional all-in-one solution for Microsoft Teams Rooms, specifically designed for extra-large conference rooms, auditoriums, and training rooms. It combines advanced audio and video technology with AI-powered features to enable immersive and efficient collaboration.

Highlights at a Glance:

✔ Dual 4K PTZ Camera System (UVC86): Two intelligent cameras with 12x optical zoom, auto-framing, and speaker tracking for dynamic and adaptable video transmission
✔ MTouch Plus Touch Panel: An 11.6-inch touchscreen with a Microsoft Teams interface for user-friendly control and management of meetings
✔ MCore Pro Mini-PC: A powerful mini-PC with an 11th generation Intel Core i5 processor for stable and fast execution of the Teams Rooms application
✔ AVHub: An audio/video processor that can manage multiple cameras and audio sources, supporting up to 9 cameras simultaneously
✔ RoomSensor: A PIR sensor for detecting room occupancy, controlling the room environment, and optimizing energy efficiency
✔ WPP30 Wireless Presentation Pod: A wireless presentation device that enables easy screen sharing from various devices
✔ BYOD Extender: A USB adapter that allows the conference system to be connected to personal devices, ensuring flexible usage
✔ Compatibility: Certified for Microsoft Teams Rooms on Windows, supports both wired and wireless connections (Bluetooth 5.2, Wi-Fi 6)

Technical Specifications:

• Camera Resolution: Dual 4K UHD (3840 × 2160) at 30 fps

• Field of View: 120° diagonal

• Zoom: 12x optical

• Touch Panel: 11.6 inches, 1920 × 1080 pixels, IPS technology

• Processor: 11th generation Intel Core i5

• Operating System: Windows 10 IoT Enterprise 64-Bit

• Connections: 3 × HDMI, 4 × USB 3.0 Type A, 1 × RJ45

• Audio: Supports various microphones and speakers, including VCM35 table microphone, CM20 ceiling microphone, and CS10 speaker

• Dimensions (Touch Panel): approx. 296 × 180 × 25 mm

• Weight (Touch Panel): approx. 1.2 kg

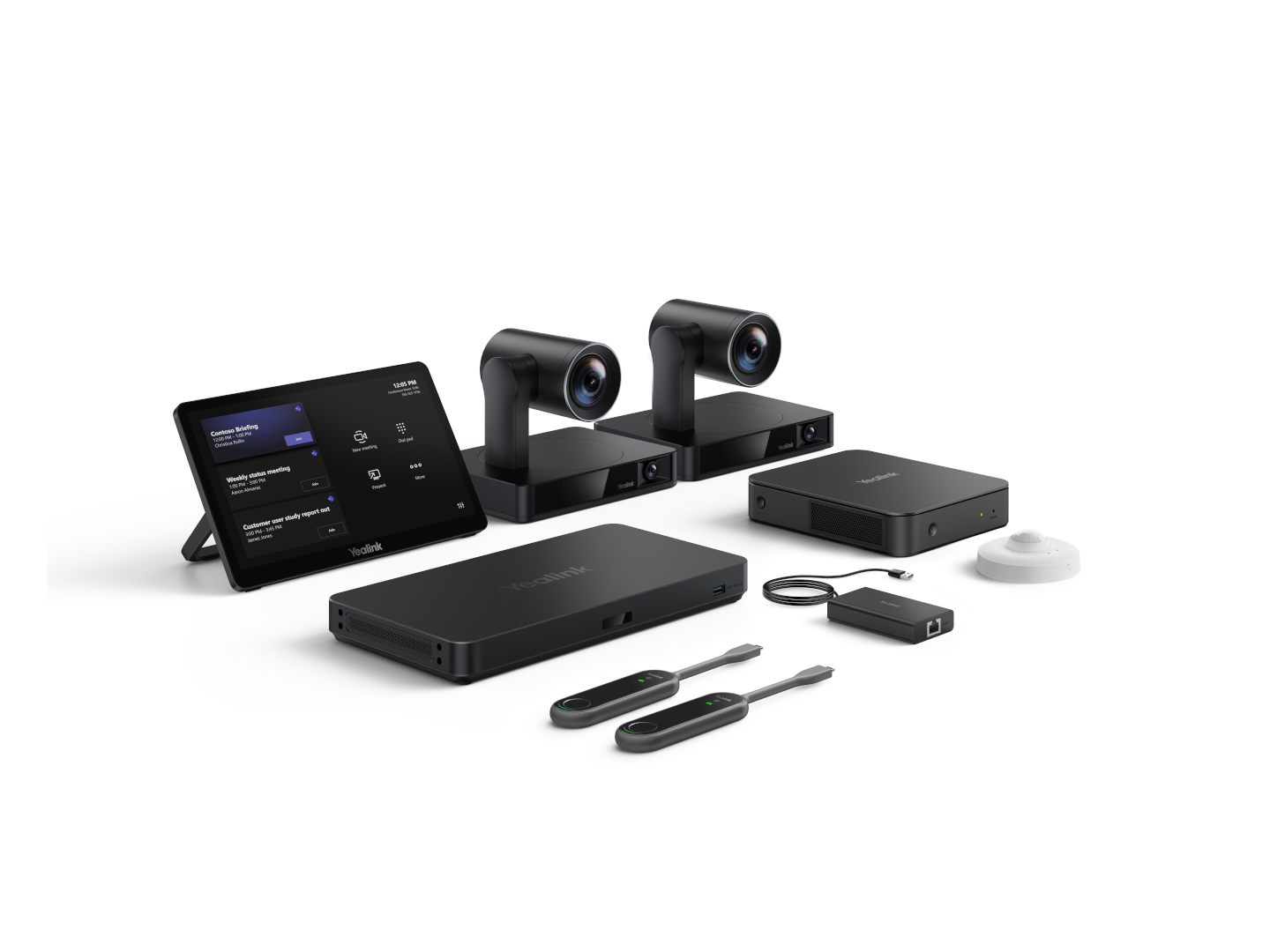

Scope of Delivery:

• 2 × UVC86 4K PTZ Cameras

• MTouch Plus Touch Panel

• MCore Pro Mini-PC

• AVHub

• RoomSensor

• WPP30 Wireless Presentation Pod

• BYOD Extender

• Mounting Accessories

• User Manual

Note: The Yealink MVC S90 is ideal for companies seeking a high-quality and scalable solution for their large conference rooms. With its advanced technology and easy installation, it provides an optimal platform for efficient and productive meetings.
